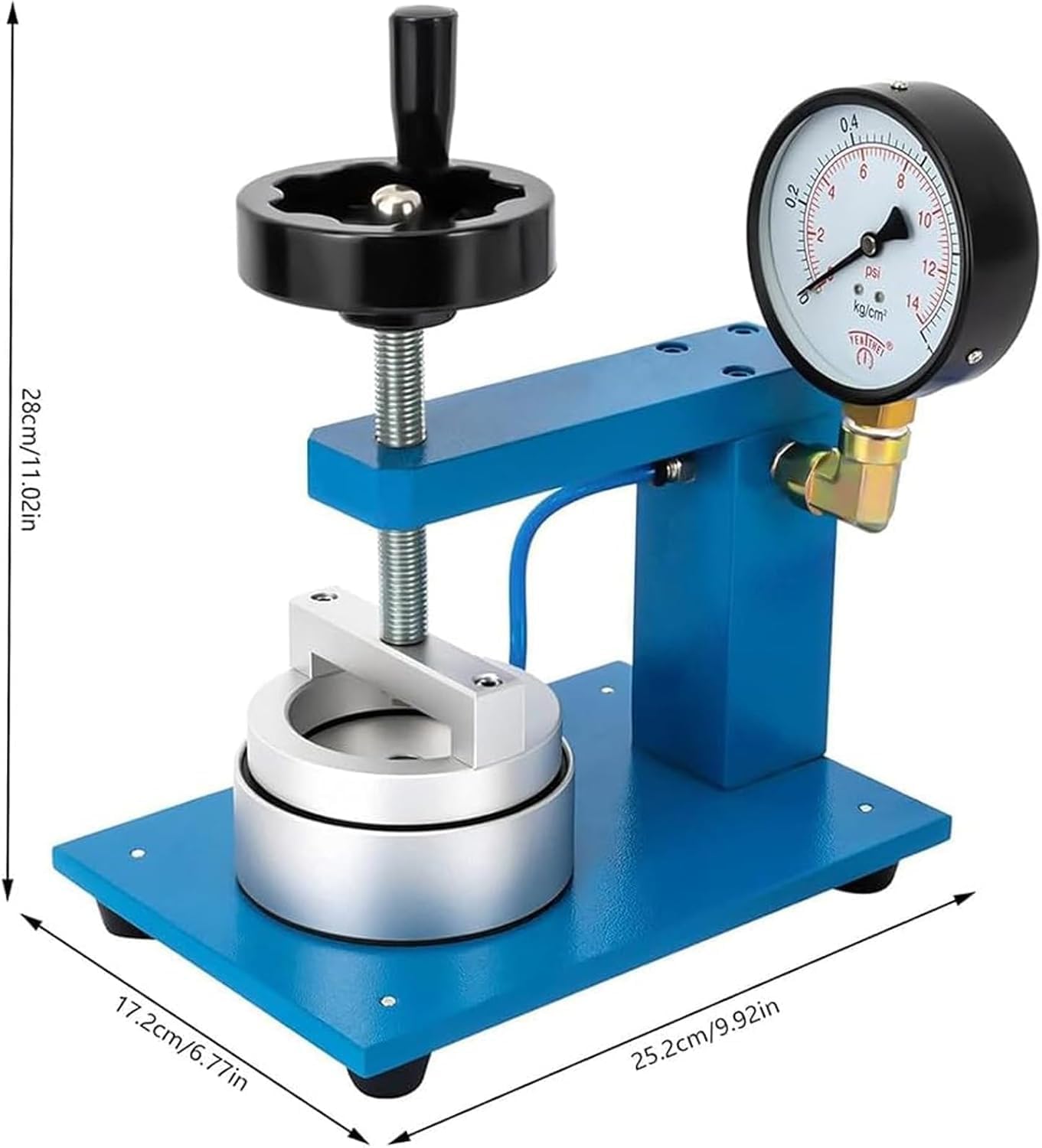

Textile Fabric Hydrostatic Pressure Tester, Plastic Bags Garments Tents Raincoat Testing Machine with Digital Pressure Gauge (2000mm)

Describe: Water penetration resistance is an extremely important characteristic of rainproof fabrics, and the resistance to water penetration into the fabric is expressed in terms of the hydrostatic pressure the fabric is subjected to. This instrument is mainly used to determine the hydrostatic pressure resistance of fabrics and can also be used to determine the hydrostatic pressure resistance of coating materials. Specification: Name: Textile fabric hydrostatic pressure tester Color: blue Material: 45# steel, aviation aluminum treatment: high temperature baking, anodizing Measuring range: plastic bags, clothes, tents, raincoats, cloth, etc. Technical parameters: The sample is placed horizontally and the sample is under pressure Pressure area: 100cm², d=11.28cm Water column height: 0 - 10000mmH2O Rising speed: 10±3mmH2O (standard speed) 60+20mmH2O Standard rate: 100 ± 30 mmH2O (increasing rate) Sensitivity: 1mmH2O, maximum display value 9999.9mmH2O Gross weight: 6kg/13.23lbs Product size: 17.2*25.2*28cm/6.77*9.92*11.02 in Packing size: 30*40*38cm/11.81*15.75*14.96 in

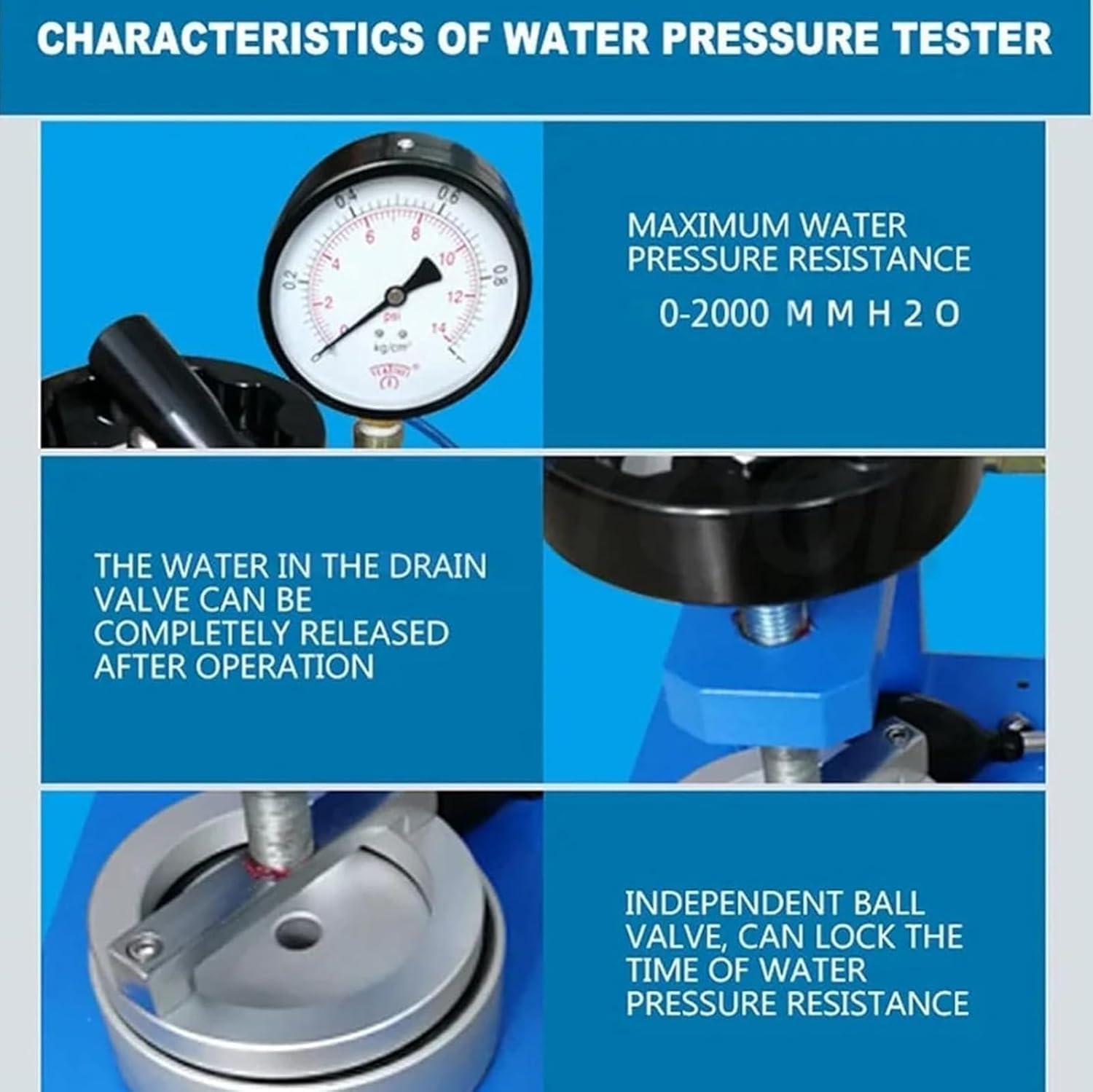

• Efficient and convenient operating experience:The testing process is fast, and by observing the height of the water column in the transparent water pipe corresponding to the instrument display value, the results can be accurately determined, greatly saving time and operating costs.
• Excellent performance testing capability: with a maximum water pressure resistance of up to 10000 millimeters of water column, which can meet the high standard performance testing needs of various materials from ordinary fabrics to professional outdoor clothing
• Intuitive and reliable working principle: Textile Fabric Hydrostatic Pressure Tester's working principle is clear and direct. By applying specific water pressure to the tested product, the operator can directly read the pressure value that the product is subjected to from the pressure gauge
• Humanized drainage and durable design: The Plastic Bags Garments Tents Raincoat Testing Machine is equipped with a drainage valve, At the same time, the machine has undergone anodizing treatment and is equipped with a water tank and pressure ring, effectively extending the service life of the equipment
• Wide range of applications: This Plastic Bags Garments Tents Raincoat Testing Machine has a wide range of uses and is suitable for testing the permeability and hydrostatic pressure resistance of various fabrics and clothing, including but not limited to ordinary fabrics, tents, raincoats
